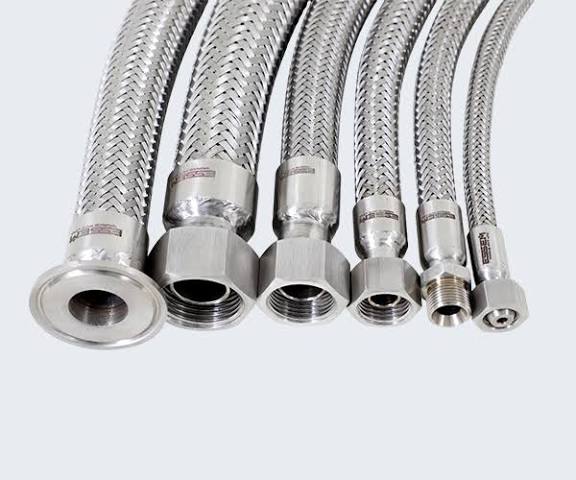

SS HOSE

SS HOSE

Rs. 600.00
Rs. 600.00
Sale Sold out
Taxes included.

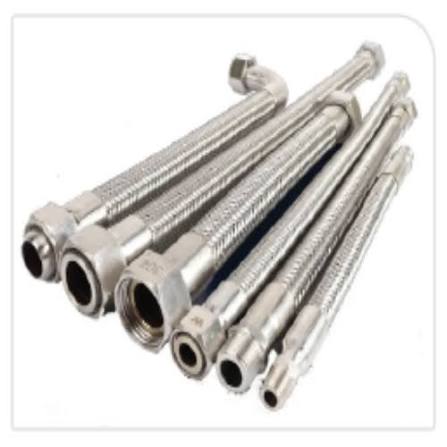

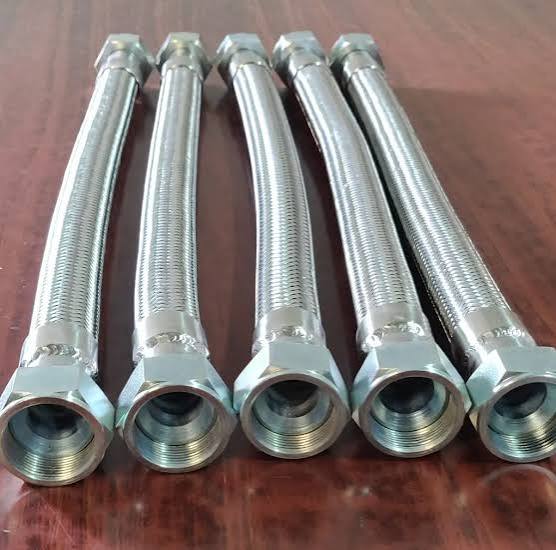

SS HOSE WITH SS BSP FITTINGS

These hoses offer flexibility and durability. They come in both braided and non-braided variations. Key features include:

  • Durability: Made from stainless steel, these hoses have a long product life.
  • Versatility: They can be used in moving parts without compromising performance.
  • High Pressure and Temperature: These hoses can handle challenging conditions.
  • Ease of Assembly: They are straightforward to install.
  • Hygienic: Suitable for applications where cleanliness is crucial.

Applications:

  • Machinery industry
  • Iron and steel industry
  • Pharmaceutical industry
  • Chemical industry
  • Hot and cold water pipelines
  • Steam pipelines

DESIGN SPECIFICATIONS:

  • Without Braid
  • Hose Material: 304L, 316L, 321
  • Working Pressure: 0-10 kg/cm²
  • Sizes: DN6-DN50
  • With Braid
  • Braid Material: 304L, 316L
Flexible Braided and Unbraided Metal Hoses Drawing
Unbraided
Flexible Braided and Unbraided Metal Hoses Drawing
Braided
DN d1 d2 Tolerance "Bend Radius With Wire Braiding TYPE 1 AND 2
(BRAIDED)"		 "Bend Radius Without Wire Braiding TYPE 3
(UNBRAIDED)"		 Working Pressure
mm inch mm mm mm mm mm mm
6 1/4″ 6,3 9,6 ± 0,2 25 12 10
8 5/16" 8.2 12.2 ± 0,2 32 16 10
10 3/8" 10.3 14.2 ± 0,2 38 20 8
12 1/2” 12.1 16.7 ± 0,2 45 25 8
16 5/8” 16.2 21.6 ± 0,2 58 25 8
20 3/4" 20.3 26.8 ± 0,2 70 30 6
25 1" 25.3 32.3 ± 0,3 85 45 6
32 11/4" 34.3 41.1 ± 0,3 105 60 2.5
40 11/2" 40.2 49.8 ± 0,3 130 80 2.5
50 2" 50.3 60.4 ± 0,4 160 100 1.6
Flexible Braided and Unbraided Metal Hoses-2
Flexible Braided and Unbraided Metal Hoses-3
Braided hoses
DN d1 d2 Tolerance "Bend Radius With Wire Braiding TYPE 1 AND 2
(BRAIDED)"		 "Bend Radius Without Wire Braiding TYPE 3
(UNBRAIDED)"		 Pressure at ambient temperature
Working Pressure Test Pressure
mm inch mm mm mm mm mm Kg /cm2 Kg /cm2
6 1/4" 6.3 10.8 ± 0,2 110 140 120 180
8 5/16" 8.2 13.7 ± 0,2 130 165 100 150
10 3/8" 10.3 15.7 ± 0,2 150 190 90 135
12 1/2” 12.1 18.1 ± 0,2 165 210 80 120
16 5/8” 16.2 23.2 ± 0,2 195 250 70 105
20 3/4" 20.3 28.4 ± 0,2 225 285 64 96
25 1" 25.3 34.4 ± 0,3 260 325 50 75
32 11/4" 34.3 43.2 ± 0,3 300 380 40 60
40 11/2" 40.2 52.2 ± 0,3 340 430 35 52.5
50 2" 50.3 62.7 ± 0,4 390 490 30 45
